Textile Braiding Machines

• Automatic
• No

• Bobbin Size
• Standard (20 mm x 70 mm)

• Capacity
• Up to 50 Meters/Hour

• Carrier
• 12

• Color
• Blue and White

• Computerized
• No

• Dimension (L*W*H)
• 1850 x 1220 x 1600 mm

• Feature
• Other, Heavy Duty, Low Maintenance

• General Use
• Rope manufacturing, braiding ropes and cords

• Horn Gear Speed
• Adjustable (40-120 RPM)

• Knitting Style
• Other, Braiding

• Machine Power
• 3 HP

• Machine Speed
• Adjustable

• Material
• Other, Mild Steel Body

• Motor Power
• 2.2 kW

• Needle Type
• Other, Braiding Needles

• Oil Bath
• Other, Available

• Panel
• Other, Control Panel Provided

• Product Type
• 12 Spindle Rope Braiding Machine

• Spindle RPM
• 800-1200 RPM

• Traction RPM
• 50-200 RPM

• Type
• Other, Semi-Automatic

• Voltage
• 380 V

• Weight (kg)
• Approx. 400 kg

• Automatic
• Yes

• Bobbin Size
• Standard (Customizable as per requirement)

• Capacity
• Depends on number of spindles (typically 8-64 spindles)

• Carrier
• Standard (Typically 16/24/32 as per machine design)

• Color
• Sky Blue

• Computerized
• No

• Dimension (L*W*H)
• Approx. 1550 x 1100 x 1850 mm

• Feature
• Other, Low noise, easy maintenance, high efficiency

• General Use
• Braiding yarns, cords, shoelaces, ropes, and tapes

• Horn Gear Speed
• 20-30 rpm

• Knitting Style
• Other, Braiding (not knitting)

• Machine Power
• 3-5 HP

• Machine Speed
• Adjustable, up to 350 rpm

• Material
• Other, Mild Steel Body

• Motor Power
• 2-3 HP

• Needle Type
• Other, Not Applicable (Braiding needles not used)

• Oil Bath
• Yes

• Panel
• Other, Digital Control Panel

• Product Type
• Textile Braiding Machine

• Spindle RPM
• 130-350 rpm (variable)

• Traction RPM
• 10-30 rpm

• Type
• Other, Vertical Braiding Machine

• Voltage
• 220V / 380V, 3 Phase

• Weight (kg)
• Approx. 450-700 kg

• Automatic
• Yes

• Bobbin Size
• Standard: 48 mm; other sizes on request

• Capacity
• Varies by model (custom variants available)

• Carrier
• 16, 24, 32, 48 (custom on request)

• Color
• Green/Blue or as per order

• Computerized
• No

• Dimension (L*W*H)
• Approx. 2200 x 1250 x 1800 mm

• Feature
• Other, High speed, low noise, uniform tightness, sturdy design

• General Use
• Industrial cord and rope making, specialty braided products

• Horn Gear Speed
• 240 RPM 320 RPM

• Knitting Style
• Other, Braided (multiple patterns)

• Machine Power
• 2 HP to 5 HP

• Machine Speed
• Up to 320 RPM

• Material
• Other, High-grade steel, cast iron

• Motor Power
• 1.5 kW 3.7 kW

• Needle Type
• Other, Not Applicable (uses bobbins/carriers)

• Oil Bath
• Yes

• Panel
• Other, Digital control panel

• Product Type
• Special Braiding Machines

• Spindle RPM
• 200-350 RPM

• Traction RPM
• 8-60 RPM (adjustable)

• Type
• Other, Heavy-duty automatic braiding machine

• Voltage
• 380V/415V, 3 Phase 50/60 Hz

• Weight (kg)
• Approx. 400-850 kg (varies by configuration)

• Automatic
• Yes

• Bobbin Size
• 120 mm x 36 mm

• Capacity
• Up to 3000 meters/day

• Carrier
• 17

• Color
• Blue & White

• Computerized
• No

• Dimension (L*W*H)
• 1500 mm x 1000 mm x 2000 mm

• Feature
• Other, High Performance, Robust Construction

• General Use
• Braiding textile yarns, threads, or wire

• Horn Gear Speed
• 250 RPM

• Knitting Style
• Other, Braiding

• Machine Power
• 1.5 kW

• Machine Speed
• Up to 120 RPM

• Material
• Other, Mild Steel Body

• Motor Power
• 1 HP

• Needle Type
• Other, Fixed

• Oil Bath
• Yes

• Panel
• Other, Digital Control Panel

• Product Type
• 17 Spindle Braiding Machine

• Spindle RPM
• 250 RPM

• Traction RPM
• 120 RPM

• Type
• Other, Automatic Braiding Machine

• Voltage
• 220-440 V, 50 Hz

• Weight (kg)
• Approx. 900 kg

• Automatic
• Yes

• Bobbin Size
• 48 mm x 140 mm

• Capacity
• Continuous Operation with High Output (Up to 50 m/h, varies by yarn type)

• Carrier
• 16 (Standard), Available 8-24 as per model

• Color
• Industrial Blue & Silver

• Computerized
• No

• Dimension (L*W*H)
• 2300 mm x 800 mm x 1700 mm

• Feature
• Other, Low Noise, Smooth Operation, Compact Design

• General Use
• Textile Industry, Cord and Lace Making

• Horn Gear Speed
• 320 RPM

• Knitting Style
• Other, Flat Braided Structure

• Machine Power
• 1.5 HP

• Machine Speed
• Up to 320 Spindle RPM

• Material
• Other, Mild Steel (Frame and Parts)

• Motor Power
• 1.5 HP (Heavy Duty Motor)

• Needle Type
• Other, Braiding Needle

• Oil Bath
• Yes

• Panel
• Other, Digital Control Panel

• Product Type
• Flat Braiding Machine

• Spindle RPM
• Up to 320 RPM

• Traction RPM
• Up to 12 RPM

• Type
• Other, Automatic Braiding Machine

• Voltage
• 220-240 V, 50/60 Hz

• Weight (kg)
• Approx. 450 kg

• Bobbin Size
• 8 x 9 (Standard)

• Capacity
• Up to 150 kg/day Ltr

• Carrier
• 3 or 6 (based on model)

• Color
• Blue, White, or Custom

• Computerized
• No

• Dimension (L*W*H)
• 4500 x 1300 x 1900 mm Yard

• Feature
• Other, Low noise, High-efficiency

• General Use
• Twisting of yarns for rope, thread, or cord manufacturing

• Horn Gear Speed
• 200 to 800 rpm mm/m

• Machine Power
• 5 HP Watt (W)

• Machine Speed
• Adjustable, up to 9000 rpm m/s

• Material
• Other, Mild Steel Frame, Alloy Steel Components

• Motor Power
• 3.7 kW Volt (V)

• Oil Bath
• Yes

• Product Type
• 3 Ply Twisting Machine

• Spindle RPM
• Up to 9000 rpm RPM

• Traction RPM
• 1100 rpm

• Type
• Other, Twisting Machine

• Voltage
• 220V / 380V / 415V (3 phase) Megaampere ( MA)

• Weight (kg)
• Approx. 1000 kg Metric Ton

• Bobbin Size
• Standard 45mm x 115mm / 50mm x 140mm (varies by configuration)

• Capacity
• Depends on number of carriers and rope size; typically up to 10-20 meters/minute m3/hr

• Carrier
• 6, 8, 12, 16, 24 (various models available)

• Color
• Blue & Silver (as per image)

• Computerized
• No

• Dimension (L*W*H)
• Approx. 1800 mm x 1200 mm x 1750 mm Millimeter (mm)

• Feature
• Other, Low noise, durable, high efficiency

• General Use
• Used for braiding ropes, cords, and laces in various industries

• Horn Gear Speed
• Variable, up to 60 cycles/minute sq m/hr

• Machine Power
• 2.2 kW Megawatt (MW)

• Machine Speed
• 10-20 meters per minute mm/s

• Material
• Other, Heavy duty steel frame with aluminum/brass components

• Motor Power
• 1.5 HP (approx) Horsepower (HP)

• Product Type
• Round Type Rope Braiding Machine

• Spindle RPM
• 80-160 RPM (adjustable) mm/m

• Traction RPM
• Up to 50 RPM

• Type
• Other, Automatic Braiding Machine

• Voltage
• 220V / 380V, 50/60Hz Ampere (amp)

• Weight (kg)
• Approx. 350-420 kg (varies by model) Tonne

• Bobbin Size
• Standard: 38 mm x 120 mm

• Capacity
• High output; up to 20 meters/hour depending on material m3/hr

• Carrier
• 16 carrier system

• Color
• Industrial Green

• Dimension (L*W*H)
• 1350 mm x 1100 mm x 1850 mm Millimeter (mm)

• Feature
• Other, High precision, Low vibration, Energy-efficient

• General Use
• Braiding various threads, ropes, cords

• Machine Power
• 2.2 kW Kilowatt (kW)

• Machine Speed
• Variable; up to 20 m/min mm/m

• Material
• Other, Heavy-duty steel body

• Motor Power
• 2 HP Horsepower (HP)

• Product Type

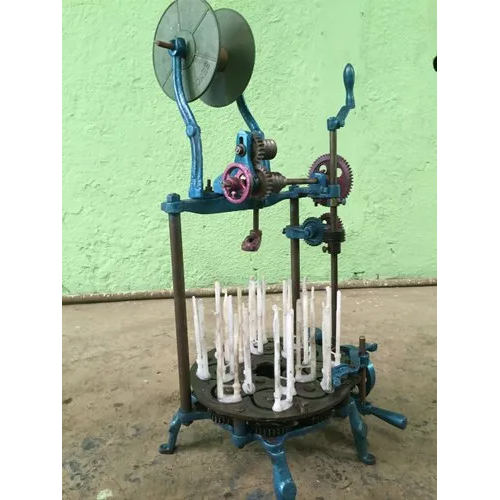

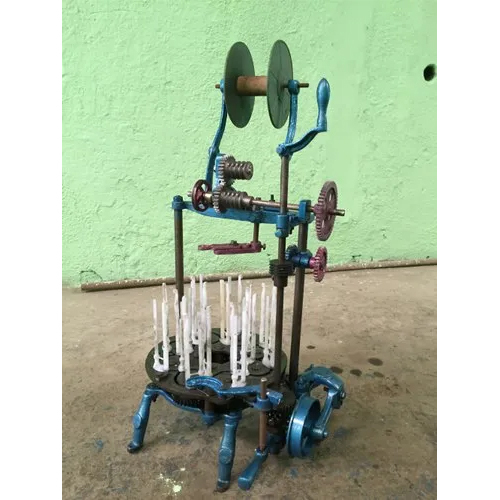

• 16 Spindle Braiding Machine

• Spindle RPM
• 200-1200 RPM RPM

• Traction RPM
• Adjustable up to 300 RPM

• Type
• Other, Vertical

• Voltage
• 220-240V / 50-60Hz Volt (v)

• Weight (kg)
• Approx. 700 kg Kilograms (kg)

• Bobbin Size
• Standard (customizable as per requirement)

• Carrier
• 12

• Color
• Blue and Grey

• Computerized
• No

• Feature
• Other, Low noise operation, Sturdy design

• General Use
• Braiding various yarns, ropes, cables

• Material
• Other, Mild Steel (MS) Structure

• Oil Bath
• Yes

• Product Type

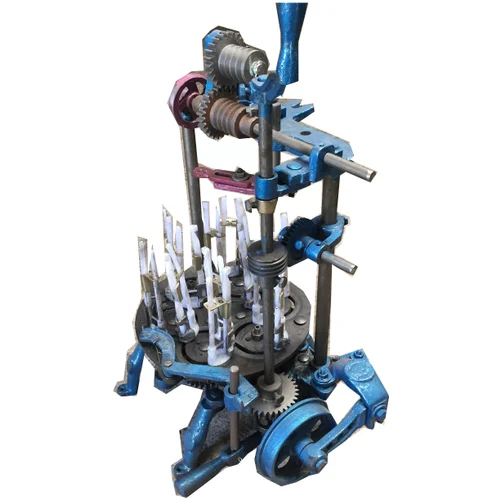

• 12 Spindle Braiding Machine

• Traction RPM
• 40-70 RPM

• Type
• Other, Vertical Braiding Machine
