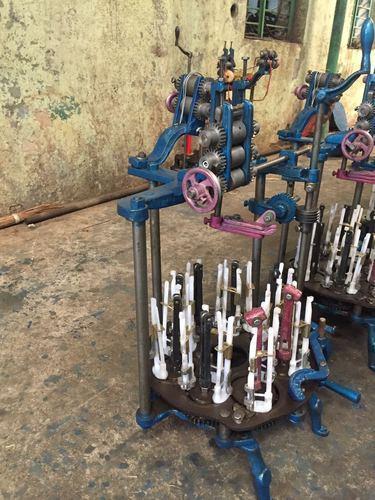

Elastic Braiding Machine

Name: Elastic Braiding Machine
Brand: SRICHAND ENGINEERING & MOULDING CO.
Price: 5400 USD
Availability: InStock

Price 5400 USD ($)/ Unit

Get a Price/Quote

MOQ : 1 Unit

Elastic Braiding Machine Specification

Carrier
8/16/24/32 (as per model)

Machine Speed
Up to 60 meters/minute

Bobbin Size
Standard 38/60 mm (L/D)

Product Type
Elastic Braiding Machine

General Use
Braiding elastic tapes and cords

Material
Mild Steel, CI Casting and precision steel components

Capacity
Variable, up to 1500 meters/day

Weight (kg)
Approx. 550 kg

Type
Horizontal Braider

Panel
Sturdy steel control panel

Oil Bath
Yes

Computerized
No

Automatic
Semi-Automatic

Knitting Style
Braided

Machine Power
2 HP

Motor Power
1440 RPM/2HP

Spindle RPM
Up to 225 RPM

Traction RPM
60 RPM

Horn Gear Speed
Adjustable

Needle Type
Universal

Voltage
220V/380V

Dimension (L*W*H)
1800mm x 750mm x 1450mm

Feature
High efficiency, low maintenance

Color
Green / Customized

Elastic Braiding Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units Per Month

Delivery Time
1 Months

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Elastic Braiding Machine

Considering our immense knowledge and experience in this domain, we are distinguished as a leading manufacturer and supplier ofElastic Braiding Machine is made at our well equipped production unit by making use of finest quality materials obtained from the certified vendors of the domain. This item is utilized in the assembling unit for braiding procedures. Offered Elastic Braiding Machine is widely applauded by our clients due to its attributes like excellent performance, high quality and durability.

Specification:

SIZE OF COM. NO. OF ELASTIC TAPES
M/c.	Silk Elastic No.	Size
5	0	1/16
7	0	3/32
9	1	1/8
13	2	3/16
17	3	1/4
21	4	5/16
25	5	3/8
33	6	1/2
49	7	3/4
65	8	1
81	9	1/Half
85	10	1/Three/Forth
105	12	2

Products	Capacity / Hour
Shoe Laces	20-30 m ( 100 ft.)
Zig zag Tapes	5-9 m ( 15 ft.)
Elastic Tapes	5-9 m ( 15 ft.)
Parallel Arrange Tapes	17-24 m (55-90 ft.)

Versatile Braiding for Multiple Materials

This machine supports a wide spectrum of fibers, including cotton, polyester, nylon, spandex, and rubber, enhancing its utility across apparel, industrial, and accessory manufacturing. Operators can easily switch materials for customized braiding projects, thanks to its universal needle and adjustable horn gear speed. The powder-coated mild steel and CI casting frame ensure durability even in demanding production settings.

Efficient and Safe Operation

Engineered for safety and speed, the elastic braiding machine features an emergency stop switch and a dust cover for environmental protection. Its centralized automatic lubrication and sturdy steel control panel simplify maintenance, reducing downtime. The machine maintains a low noise level, supporting a comfortable work environment while allowing for an impressive output of up to 60 meters per minute.

User-Friendly, High-Capacity Design

With semi-automatic controls and both manual and optional PLC integration, the machine is intuitive to operaterequiring only a single operator. The variable spindle carriers and adjustable tension system accommodate a range of project requirements, making this machine a flexible solution for producers aiming for daily outputs of up to 1500 meters, all while occupying a compact floor space.

FAQs of Elastic Braiding Machine:

Q: How does the Elastic Braiding Machine operate and what materials can it braid?

A: This machine employs a belt-driven horizontal design that allows for either manual or PLC (optional) control. It efficiently braids elastic cords and tapes using a range of materials, including cotton, polyester, nylon, spandex, and rubber.

Q: What is the installation and setup process for this machine?

A: The machine is floor-mounted and comes with a sturdy powder-coated frame. It requires a power supply of 220V or 380V at 50/60 Hz and should be installed in an environment with a temperature between 0C and 40C. Only one operator is needed to manage the setup and daily operation.

Q: When should the machines lubrication system be maintained?

A: Thanks to its centralized automatic or oil bath lubrication system, maintenance is minimal. It is advisable to check and refill oil as part of routine inspections, ensuring continuous smooth operation and reducing the risk of breakdowns.

Q: Where can I use this braiding machine effectively?

A: This braiding machine is ideal for use in textile factories, elastic tape production facilities, and other manufacturing setups that require high-volume output of braided elastic cords or tapes. Its compact structure and dust cover make it suitable for a variety of industrial environments.

Q: What is the typical output capacity and operator requirement?

A: The machine is capable of producing up to 1500 meters of braided material per day, with a speed of up to 60 meters per minute depending on the model. Only one trained operator is necessary, making it a cost-effective choice for manufacturers.

Q: How does the adjustable tension control benefit the braiding process?

A: Adjustable tension control enables precise regulation of yarn tightness, ensuring consistent quality of the final braid. This feature is particularly valuable when switching between different materials or fulfilling specific customer requirements.

Q: What safety and environmental features are included with the machine?

A: The elastic braiding machine is equipped with an emergency stop switch for operator safety, a dust cover for environmental protection, and operates at a low noise level. These attributes help create a safer and more pleasant workspace.
